Product Introduction

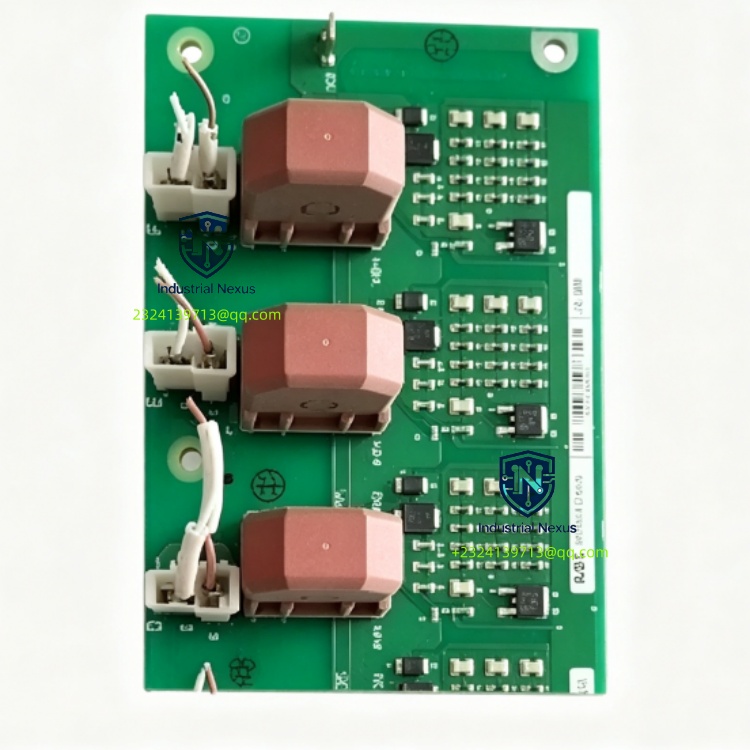

The ABB UNS0881a-P,V1 3BHB006338R0001 is an original rack-mounted GDI gate driver interface PCB designed for ABB UNITROL 6000 X-Power generator excitation system. It receives control pulse commands from the main controller and generates isolated gate drive signals to trigger IGBT power semiconductor devices inside the rectifier unit. Featuring high-speed signal conversion, galvanic isolation and power device fault monitoring, this interface board ensures precise and reliable power switching control for static excitation systems in power plants.

Content Details

ABB UNS0881a-P,V1 3BHB006338R0001 is a critical power drive interface spare part of ABB UNITROL 6000 X-Power excitation rack. This GDI board acts as the signal bridge between the digital control core and high-power IGBT modules. It receives firing instruction signals transmitted from the main control board via backplane bus, converts low-voltage logic commands into isolated high-current gate driving pulses, and sends these drive signals to IGBT power units to control turn-on and turn-off actions. Accurate gate drive control directly determines the quality of DC excitation output, supporting stable voltage regulation of synchronous generators under dynamic load and grid fluctuation conditions.

The board integrates multi-channel isolation circuits to separate low-voltage control logic and high-power power electronic loops, effectively suppressing voltage spikes and electromagnetic interference generated during IGBT switching, protecting the control side circuits from high-voltage damage. Equipped with comprehensive self-diagnosis and watchdog monitoring mechanism, the board continuously checks drive signal status, IGBT fault feedback, power supply quality and internal circuit health in real time during long-term continuous operation. Once detecting drive failure, power device abnormal feedback or circuit fault, it triggers alarm signals and uploads fault logs to the main controller. Maintenance engineers can quickly locate faults according to alarm information without full generator shutdown, lowering unplanned trip risks and production loss. Manufactured with industrial-grade electronic components and anti-corrosion conformal coating treatment, this GDI board has excellent shock resistance, vibration resistance and outstanding EMC performance. It can run reliably in a wide temperature range and adapt to control cabinet environments with strong electromagnetic interference, dust and humidity in thermal power plants, hydropower stations and industrial captive power plants.

This Eurocard plug-in board fits directly into UNITROL rack slots. Its modular structure supports convenient plug-and-play replacement. After installation, simple drive signal verification and function test are required, greatly shortening maintenance downtime during regular overhaul and emergency repair. Widely used for power semiconductor drive control in large generator static excitation systems. Before shipment, each ABB UNS0881a-P,V1 unit undergoes full functional testing, gate drive waveform verification and aging inspection, eliminating hidden hardware defects and guaranteeing stable 24-hour continuous operation for power station excitation control projects.

Tags: UNS0881a-P V1 3BHB006338R0001 ABB GDI gate driver board
