Product Introduction

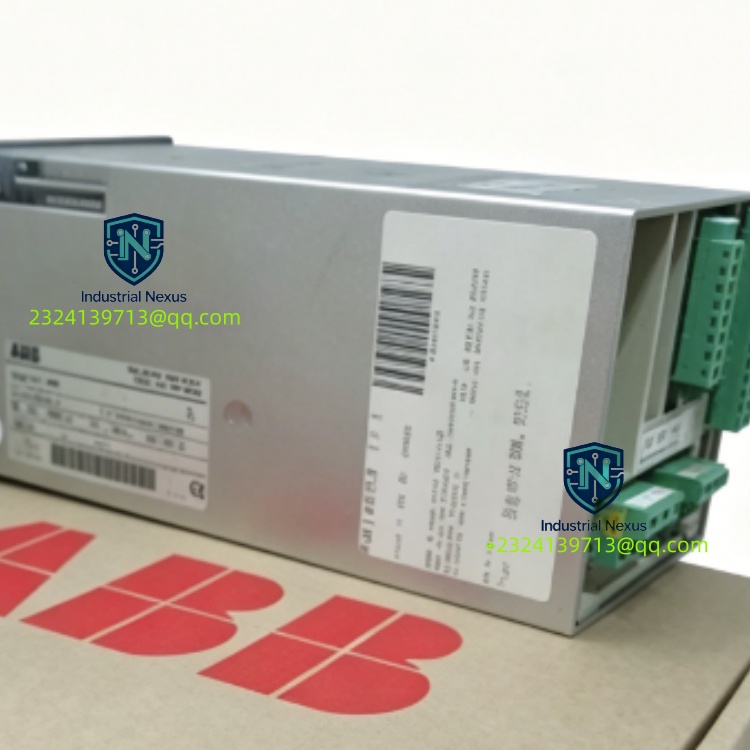

The ABB PFSK162 3BSE015088R1 is an original rack-mounted signal conditioning and processing board developed for ABB Advant and MasterPiece DCS automation systems. It is specially designed for high-precision tension measurement and load cell signal processing. The board supplies stable excitation power for Pressductor tension sensors, completes signal amplification, conditioning and conversion, and realizes bidirectional data communication with the main controller via backplane bus and serial interfaces. With multi-channel I/O integration and comprehensive fault diagnosis capability, it delivers accurate and reliable measurement control for continuous production in heavy industrial sites.

Content Details

ABB PFSK162 3BSE015088R1 is an important core spare part of ABB Advant distributed control system, functioning as a multi-functional signal processing hub for tension and force measurement applications. This rack board provides regulated AC excitation current for Pressductor load cells, receiving weak strain signals from tension transducers, then carrying out amplification, filtering and normalization to convert raw sensor signals into standard analog output signals including 4-20mA and 0-10V for upper control system. It integrates multiple digital input and output channels to collect switch status and output control commands, which greatly reduces the quantity of separate I/O modules required inside the DCS rack and optimizes cabinet layout.

Equipped with built-in multi-point self-diagnosis and watchdog monitoring mechanism, the board continuously checks load cell connection status, signal amplitude, channel overload, internal circuit condition and communication link quality during long-term operation. It can quickly identify sensor disconnection, signal clipping, cable damage and communication timeout issues, automatically trigger alarm signals and upload fault logs to the control host. This enables maintenance technicians to locate defective channels rapidly without shutting down the whole production line. Adopting industrial-grade chips and anti-corrosion conformal coating treatment, this processing board has excellent shock resistance, vibration resistance and electromagnetic interference suppression ability. It maintains high measuring accuracy under wide temperature fluctuation, and can adapt to control cabinet environments with dust, humidity and strong electromagnetic noise in paper making, metal rolling, plastic film, metallurgy and other process industries.

This board adopts standard subrack plug-in structure and can be directly inserted into ABB DCS rack slots. The modular design supports simple plug-and-play replacement, and complicated program reconfiguration is not required after replacement, effectively cutting plant downtime during routine maintenance and emergency repair. It is widely deployed for web tension control, roll force monitoring and material thickness closed-loop control in continuous production lines. Before delivery, every ABB PFSK162 3BSE015088R1 undergoes strict full functional testing, signal precision calibration and aging inspection, screening potential hardware defects to guarantee stable and reliable 24-hour continuous operation performance for industrial automation control projects.
