Product Introduction

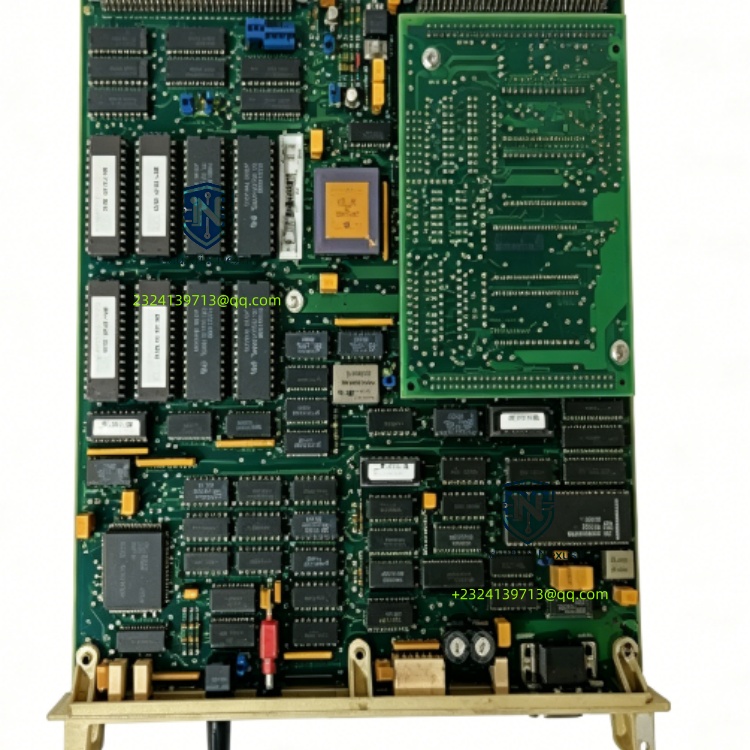

The ABB PFSK130 3BSE002616R1 is an original rack-mounted channel control unit developed for ABB Advant DCS automation systems. It serves as a high-precision signal processing interface board for load cell and tension measurement applications. It converts raw sensor signals into standard industrial output signals and communicates with the main controller through the backplane bus. With built-in signal isolation and comprehensive fault monitoring functions, this unit delivers stable and accurate measurement and control performance for heavy industrial continuous production.

Content Details

ABB PFSK130 3BSE002616R1 is a core spare part of ABB Advant distributed control system, also known as channel control unit dedicated for tension and weight measurement tasks. This rack board is mainly used to receive raw signals from Pressductor tension load cells and other strain sensors, complete signal conditioning, amplification and normalization, then convert these physical measurement signals into standard 4-20mA or 0-10V DC output for upper control system. It adopts AC constant current excitation technology to ensure high measuring accuracy and suppress signal drift caused by temperature changes, which is critical for web tension control in pulp and paper, metal rolling and plastic film production lines.

Equipped with multi-point self-diagnosis and watchdog monitoring mechanism, the board continuously detects sensor disconnection, channel overload, circuit abnormality and backplane communication failure in real time during running. Once faults are captured, it immediately generates alarm signals and uploads fault information to the control host, allowing maintenance technicians to quickly locate defective channels without shutting down the whole system. Adopting industrial-grade chips and conformal coating protection treatment, this control unit has excellent shock resistance, vibration resistance and electromagnetic interference resistance. It can maintain stable high-precision measurement under wide temperature variation, and adapt to cabinet environments with dust, humidity and strong electromagnetic noise in paper mills, metallurgy, power generation and other process industries.

It adopts standard subrack insertion design, directly fitting into ABB Advant DCS rack slots. The modular structure supports simple plug-in replacement, and does not require complicated program reconfiguration after replacement, which greatly reduces equipment downtime during routine maintenance and emergency repair. This channel control unit is widely applied in tension control, material weight monitoring and force measurement closed-loop control scenarios. Before shipment, each ABB PFSK130 3BSE002616R1 will go through full function test, signal accuracy calibration and aging inspection, eliminating hidden hardware troubles to guarantee reliable 24-hour continuous operation for long-term industrial automation projects.
