Product Introduction

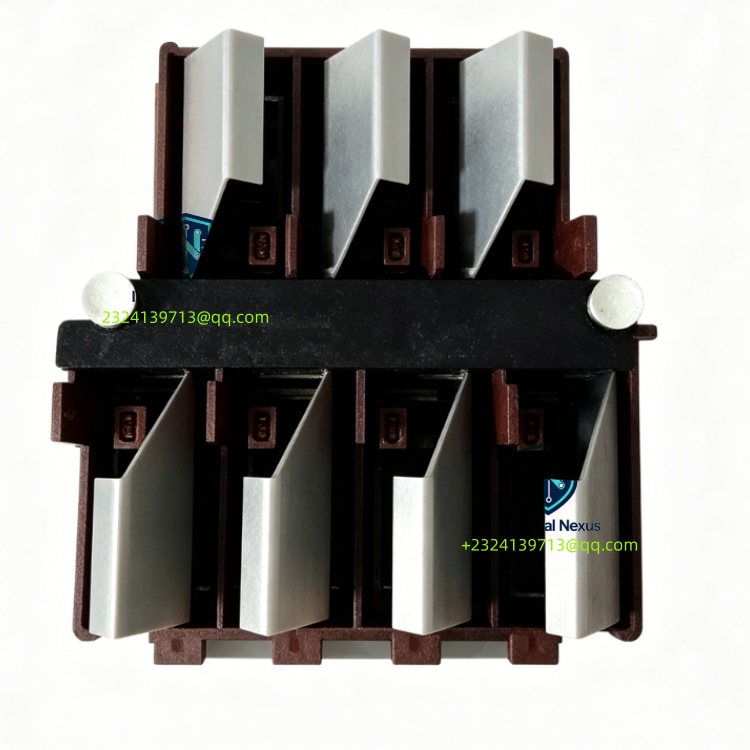

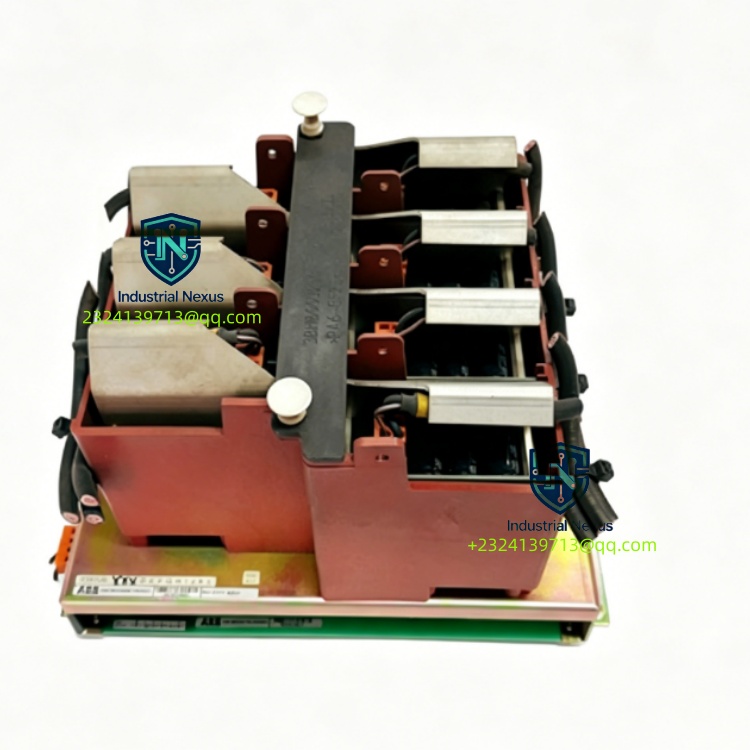

The ABB KUC711AE101 is a high-reliability gate unit power supply module for ABB medium voltage converters and generator excitation systems, widely used in ACS1000 series MV drives. It supplies isolated stable power for IGCT/IGBT gate drive units, provides high voltage galvanic isolation, overvoltage, undervoltage, overheat and short-circuit protection. It adopts fiber-optic signal transmission to separate control circuit and high-power stage, reducing electromagnetic interference. This module is a critical spare part for power plant excitation and medium voltage variable speed drive systems.

Content Details

ABB KUC711AE101 is also marked with part codes 3BHB004661R0101 and 3BHB004791R0101. It converts input power into isolated gate driving power for power semiconductor devices. It receives optical trigger signals from main control board and outputs driving voltage to turn on/off power devices. Built-in multi-protection functions detect abnormal working status and send fault alarm signals to upper controller. It features fast response and high isolation performance, which can suppress interference from high-power circuit. Rugged rack pluggable design, suitable for continuous operation under strong electromagnetic interference and vibration in power plant and heavy industry sites. KUC711AE101 is commonly used for maintenance replacement of ABB ACS1000 medium voltage drives and excitation racks. Before shipment, each unit undergoes full function test and thermal aging inspection to eliminate hidden defects and guarantee stable long-term operation.

Tags: KUC711AE101 3BHB004661R0101 3BHB004791R0101 ABB gate unit power supply
