Product Introduction

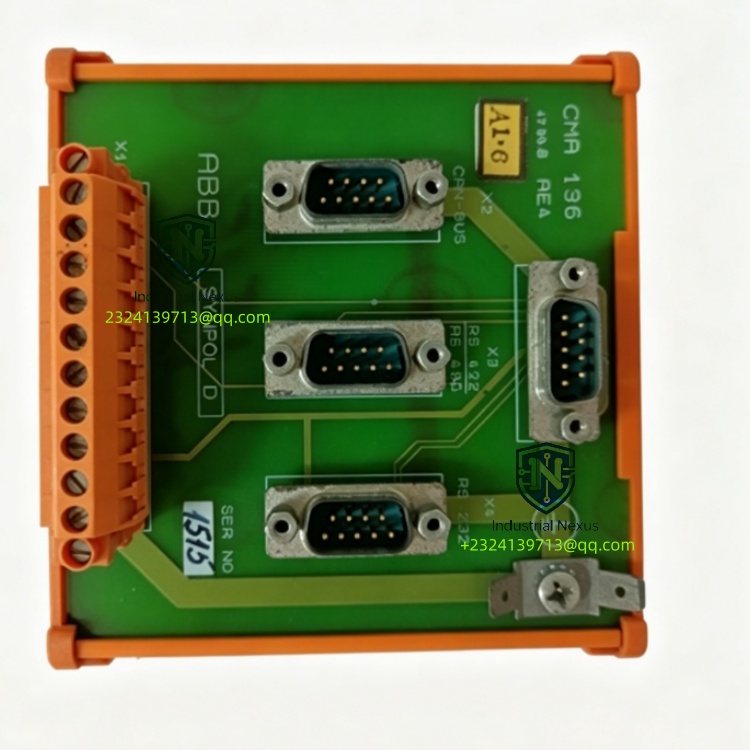

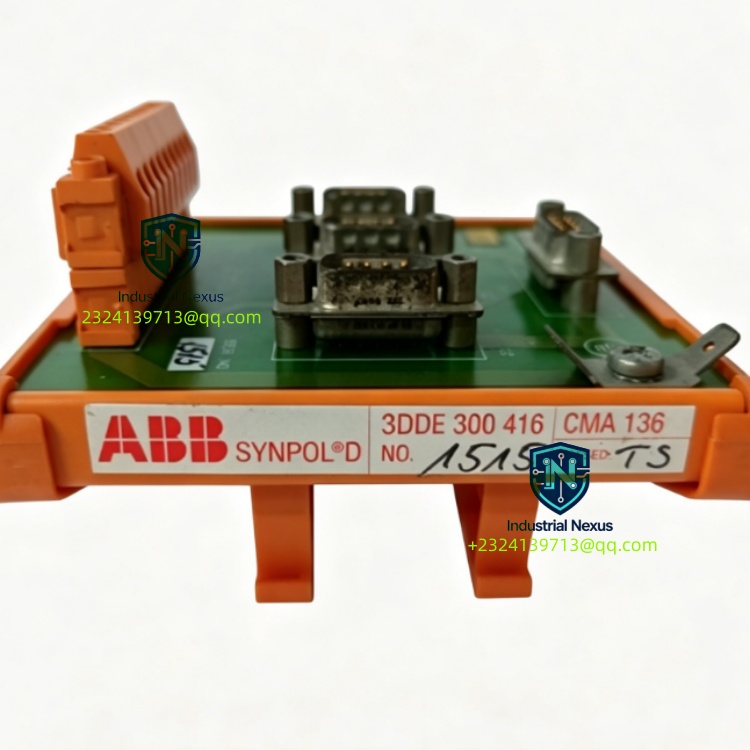

The ABB CMA136, part number 3DDE300416, is a dedicated protection interface terminal board belonging to ABB SYNPOL D generator control and protection system. It serves as the signal connection terminal unit between external generator protection relays, field measuring sensors and the SYNPOL D main control rack. This board collects safety-critical protection signals, analog measuring signals and binary status signals, and transmits them to core control boards inside the rack. With built-in signal isolation and surge protection circuits, it effectively blocks high voltage surges and electromagnetic interference from power equipment. Adopting industrial-grade PCB and high-quality electronic components, it maintains stable signal transmission under tough power plant conditions including vibration, temperature variation and strong electromagnetic noise. Widely used in thermal power, hydropower generator sets and large synchronous motor control systems. It is a vital spare part for SYNPOL D rack maintenance, terminal board replacement and power automation system renovation.

Content Details

Brand: ABB Model: CMA136 Part No: 3DDE300416 Product Type: Protection Interface Terminal Board Series: SYNPOL D Generator & Motor Control System The ABB CMA136 3DDE300416 terminal board is specially designed for SYNPOL D control cabinet rack installation. Its core function is to realize safe wiring and signal transfer between field-side protection devices and internal controller modules such as CMA120, CMA131 and CMA132. It integrates multiple screw terminal blocks and multi-channel signal interfaces, simplifying field wiring arrangement and reducing wiring error risks. This board undertakes transmission of generator trip protection signals, voltage and current measurement signals, relay status feedback and interlock signals. These signals directly affect generator excitation regulation and protection action logic. Built-in isolation circuits separate high-power field circuits and low-voltage control circuits, preventing high voltage from penetrating and damaging expensive core control boards. Every CMA136 board undergoes complete functional testing and aging screening before shipment to lower failure probability under long-term 24/7 continuous operation. Optimized EMC design suppresses electromagnetic noise generated by transformers, high-voltage switchgears and large rotating equipment in power stations. It adopts plug-in rack structure and can be directly inserted into the SYNPOL D backplane. Front panel equipped with multiple communication ports and terminal blocks, supporting convenient wiring, inspection and quick on-site replacement. Status indicators help maintenance engineers rapidly check signal channel status and locate wiring faults to shorten equipment downtime. It can work cooperatively with all other SYNPOL D series modules to construct a complete generator protection, excitation control and power monitoring system. Typical application scenarios include steam turbine generator control, hydro generator protection, large synchronous motor speed regulation and marine generator power management. When the original protection interface terminal board fails, CMA136 3DDE300416 can be used as direct replacement to recover signal acquisition and generator protection functions. This terminal board complies with power industry specifications and international industrial safety standards. Compact rack layout and robust circuit design support long-term stable operation. Whether you prepare spare parts inventory for power station overhaul or purchase components for power automation retrofit projects, the ABB CMA136 3DDE300416 protection interface terminal board provides safe and reliable signal connection for your SYNPOL D control rack.
